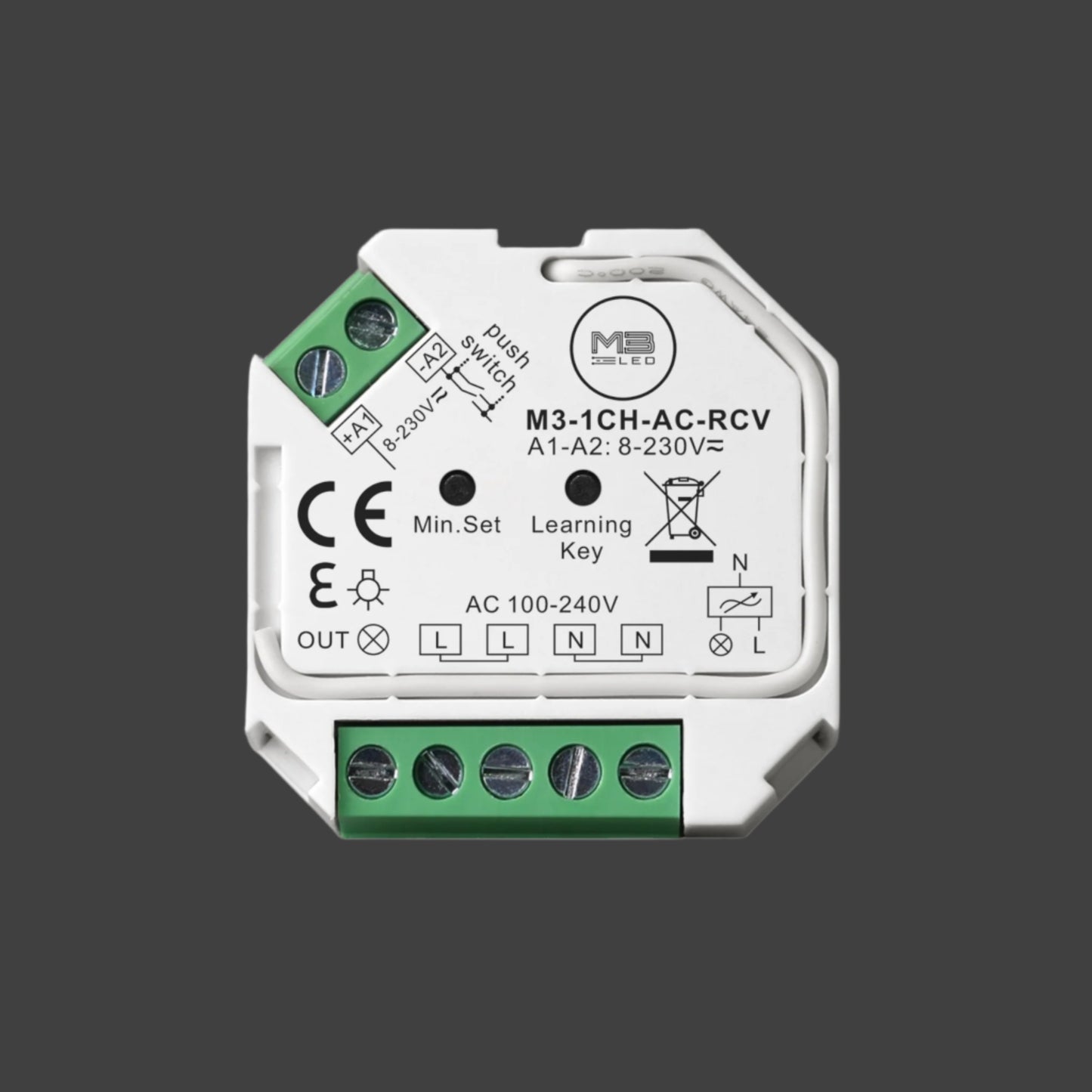

1 Channel RF Triac Dimmable Receiver - Mains 230V - 400W

M3-1CH-AC-RCV  is an innovative AC phase-cut dimmer with RF control and push dim function. The AC dimmer is designed with 100-240VAC wide input and output, 1 channel and maximum 400W output. The RF dimmer is both triac dimmable and mosfet dimmable.

• AC phase-cut dimmer with RF control and push dim function.
• Safe and reliable full isolation design.
• 100-240VAC input and 100-240VAC output.
• 1 channel, maximum 400W output.
• Triac dimmable and Mosfet dimmable
• Trailing edge dimming
• Great compatibility with a variety of Perfect RF series remote controls.
• Can be WiFi controlled via APP installed on IOS or Android Systems.
• Innovative minimum brightness setting function.
• To dim and switch single colour dimmable LED lamps, traditional incandescent and halogen lights.
• Input and Output with Screw Terminals, Safe and Reliable.
• Mini Size, Easy to be Installed into A Standard 86*86mm Wall Box.
• Radio frequency available: 869.5/434/916.5MHz

User Manual: Click Here
